Jaguar 4.2L Triple Weber Manifold and Carb Conversion Kit

1964 - 1972 Jaguar 4.2L (all variants).
(will also work on XKE 3.8L - see note below)
(will also work on XJ6's - see note below)
You know you want this!!  You've always dreamed about getting this kind of set-up.  High performance side-draft carbs are still the enthusiast's choice to extract maximum power from the 4.2L engine.

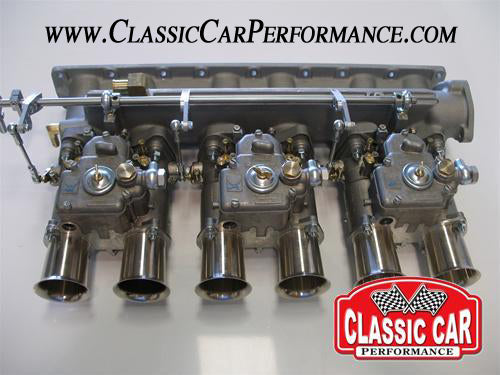

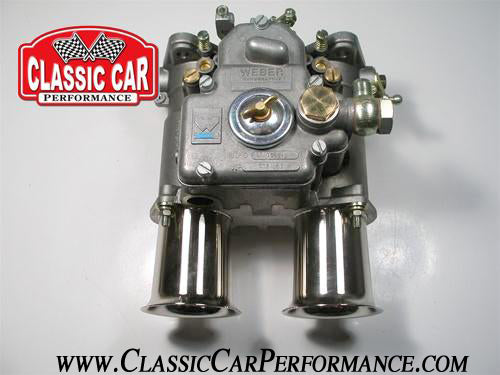

The kit includes: Intake Manifold, linkage, (3)Genuine Weber 45 DCOE 152 carburetors, and ram pipes.

• We will jet the carb for a stock 4.2 liter engine with the following setup unless you specify otherwise.

• 6x 61450.027 f2 e-tube
  6x 73401.165 main jet
  6x 74821.065 idle jet
  6x 76801.040 pump jet
  6x 77401.190 air corrector
  3x 79701.050 exhaust valve

• We can custom jet for an additional fee.  Side-draft Carb installation and tuning requires experience.  If you are a novice, we recommend that you have an experienced mechanic tune and synchronize the final product.
• Choke setup:  Run the stock, single choke wire through the enrichment circuit of all 3 carbs. Cut the cable sheath back to align with the 1st carb in the row, then pass the wire through #2 and #3.


• Also fits the 3.8L:  To use this kit on your 3.8L you will need
  1. XKE 4.2L Series II Thermostat Housing : Click here
  2. XKE 4.2L Intake Gasket

• Also fits carbureted Jaguar XJ6.  You will also need the following:
  1. XKE 4.2L Series II Thermostat Housing : Click here
• ** Will NOT work on fuel injected XJ's **

• We will provide for tech support free of charge!
