About the Product
This same diagram is available on each of the starter pages.

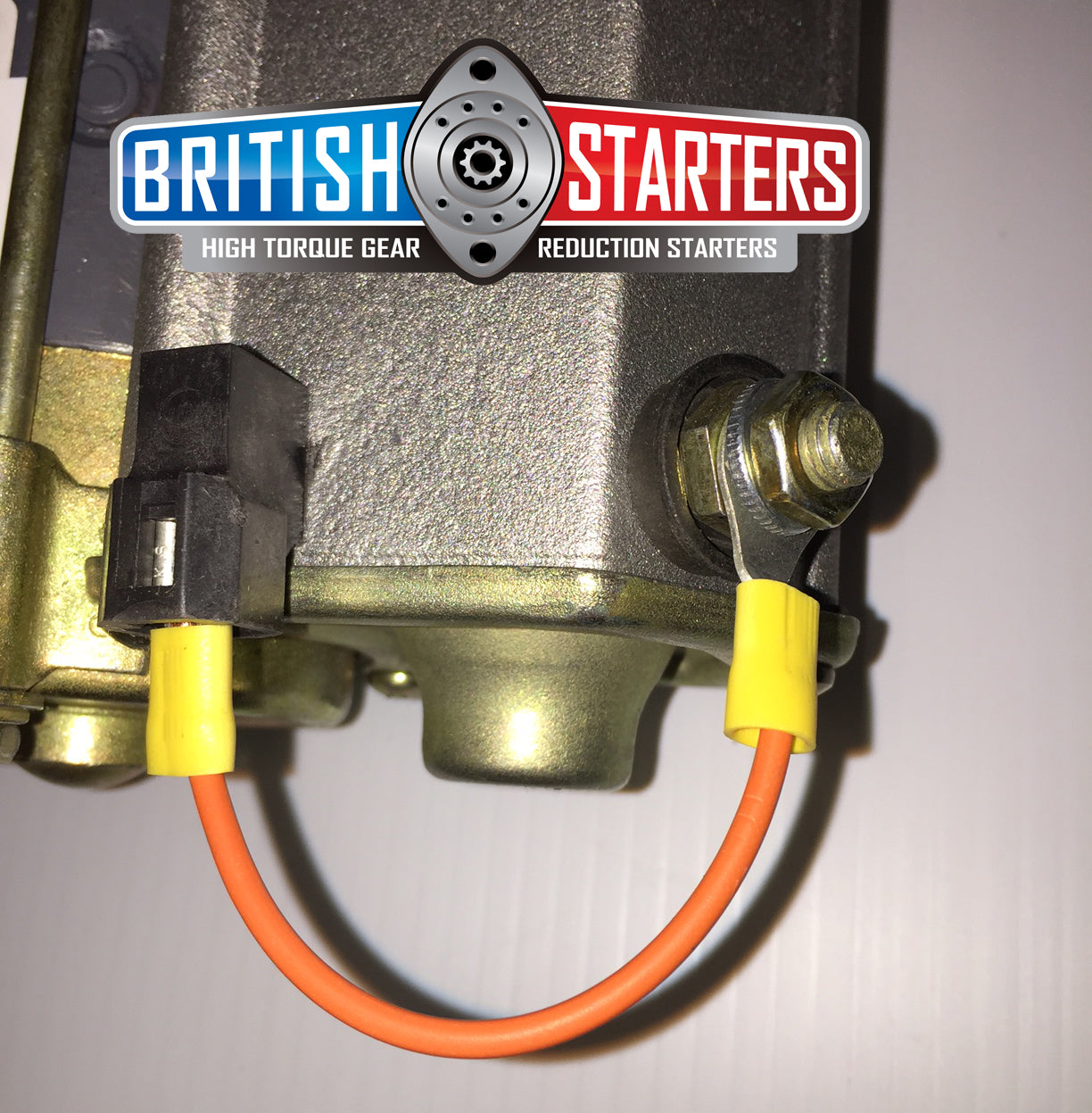

Picture #2 & #3 are examples of the bypass wire installed.
Picture #4 shows a screw terminal for those cars with a ballast resistor "triple wire" hookup.
No need to place this in the shopping cart for checkout.
Simply click on the image to enlarge.
Then Print or right-click and save to your computer.
Free.
